JF-1 fork Scooter and Mini GP, adjustable - height 640mm
Cod: FRM010
Ricambi ed accessori

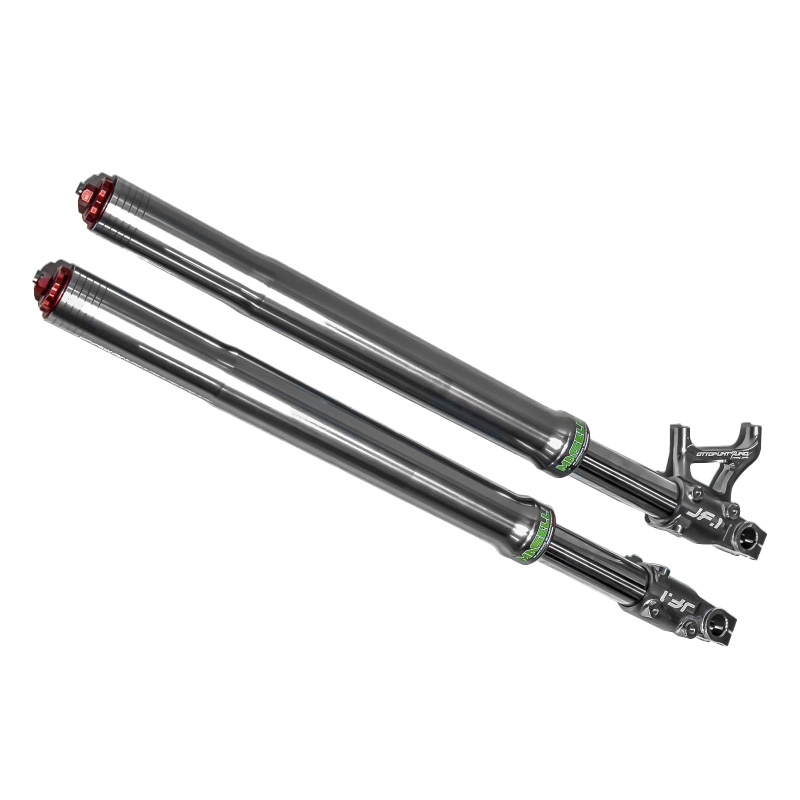

Ottopuntouno JF-1 fork 640mm long, sleeve diameters 45mm above, 48mm below.
Fully adjustable in compression, rebound and spring preload.
Maggiori informazioni
The Ottopuntouno JF-1 fork represents the result of our racing team's commitment on the track, which has been condensed into this product in which there is a calibration that fits perfectly for use in racing scooters.
The fork is also perfect for use in miniGP.
Caliper support with 84.2mm center distance perfect for Ottopuntouno and Formula calipers, for 220+mm discs (predisposed for mounting spacers for larger discs).
Stem diameter 38mm
Stroke 101mm Upper sleeve fixing diameter 45mm
Lower sleeve fixing diameter 48mm
Wheel pin clamp through diameter 20mm
Springs fitted as standard (Nr.2) k=7 (kg/mm)
Rebound adjustment 38 clicks
Compression adjustment 38 clicks
Spring preload adjustment (10mm total, 0.5mm/click) 20 clicks
Basic settings (factory original):
Both compression and rebound 20 clicks from fully closed (screwed in)
Preload 6 clicks from open
FRM010
8 Items
Ottopuntouno JF-1 fork 640mm long, sleeve diameters 45mm above, 48mm below.
Fully adjustable in compression, rebound and spring preload.
